ELECTRICAL DATA(STC) of FIX200EDAP Mono Solar Panel
|
ELECTRICAL PARAMETERS
|
|||||
|
Module
|
FIX200EDAP-72H
|
FIX200EDAP-72H
|
FIX200EDAP-72H
|
FIX200EDAP-72H
|
FIX200EDAP-72H
|
|
Peak Power Watts(Pmax/W)
|
530
|
535
|
540
|
545
|
550
|
|
Power Output Tolerance(W)
|
0 ~ +5W
|
||||
|
Maximum Power Voltage(Vmp/V)
|
31.0
|
31.2
|
31.4
|
31.6
|
31.8
|
|
Maximum Power Current(Imp/A)
|
17.11
|
17.16
|
17.21
|
17.24
|
17.29
|
|
Open Circuit Voltage(Voc/V)
|
37.3
|
37.5
|
37.7
|
37.9
|
38.1
|
|
Short Circuit Current(Isc/A)
|
18.19
|
18.24
|
18.30
|
18.35
|
18.39
|
|
Module Efficiency(%)
|
20.30
|
20.50
|
20.70
|
20.90
|
21.00
|
|
Temperature Coefficient of ISC(α-Isc)
|
0.04%/℃
|
||||
|
Temperature Coefficient of Voc(β-Voc)
|
-0.25%/℃
|
||||
|
Temperature Coefficient of Pmax(γ-Pmp)
|
-0.34%/℃
|
||||
|
STC
|
Irradiance 1000W/m² ，cell temperature 25℃，AM1.5G
|
||||
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.
ELECTRICAL CHARACTERISTICS Of FIX200EDAP Mono Solar Panel |
|||||
|
Backside Power Gain
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Peak Power Watts(Pmax/W)
|
567
|
573
|
578
|
583
|
589
|
|
Maximum Power Voltage(Vmp/V)
|
37.3
|
37.5
|
37.7
|
37.9
|
38.1
|
|
Maximum Power Current(Imp/A)
|
19.46
|
19.52
|
19.58
|
19.63
|
19.68
|
|
Open Circuit Voltage(Voc/V)
|
37.3
|
37.5
|
37.7
|
37.9
|
38.1
|
|
Short Circuit Current(Isc/A)
|
18.31
|
18.36
|
18.41
|
18.45
|
18.50
|

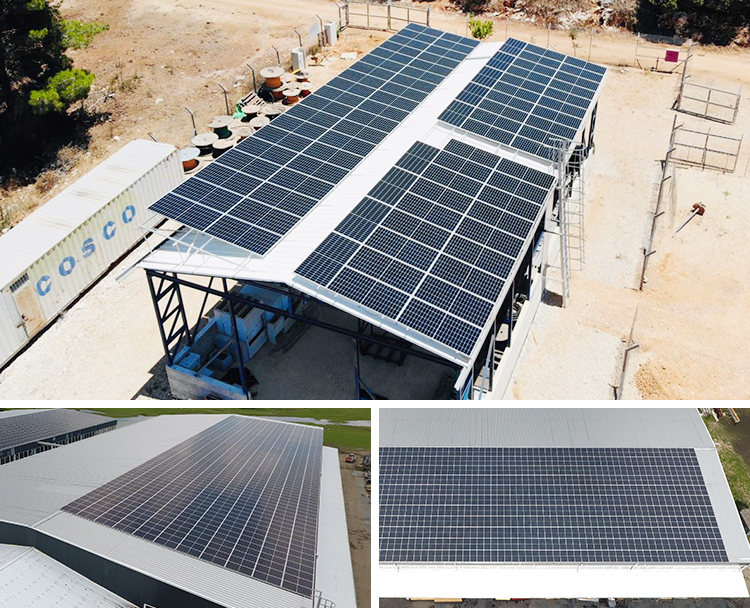

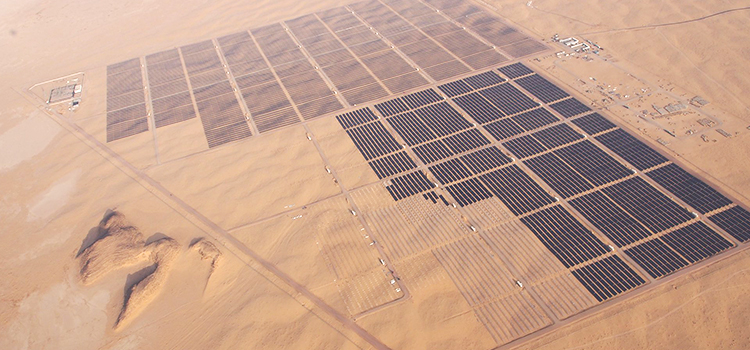

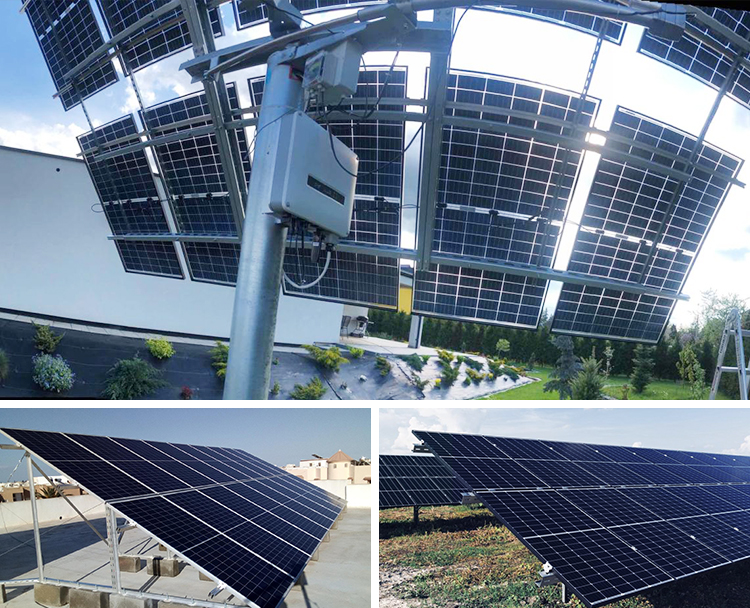

Project Cases
